Sudan - Erection sequence
| See also | |
|
|
 |
|

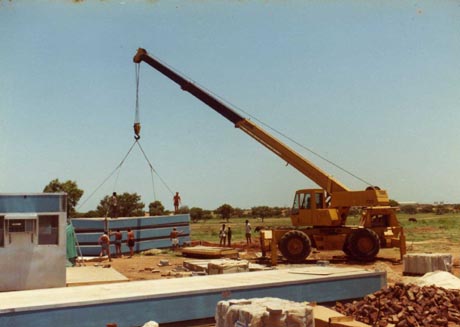

Lifting off a packed Supacom building from a stack of three.
[03-M-09] |
| ||
 |
|

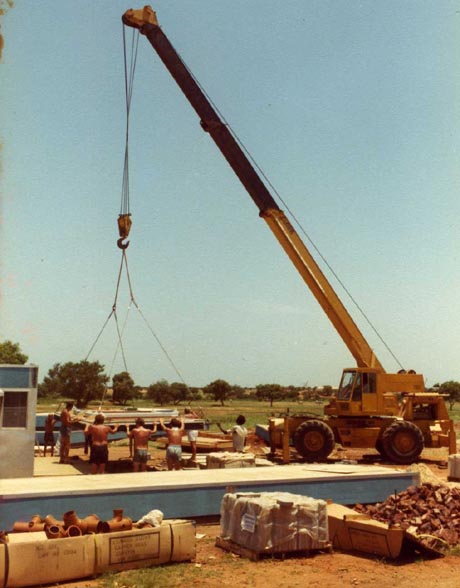

Lifting wall panels.
[03-M-12] |
| ||
 |
|

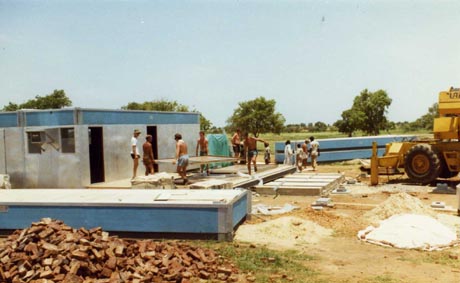

Laying out wall panels.
[03-M-13] |
| ||
 |
|

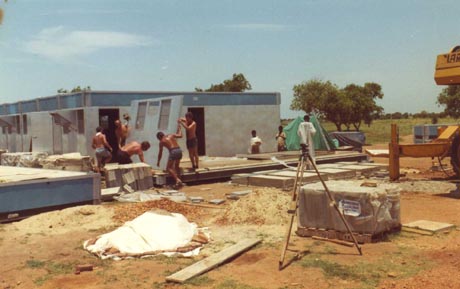

Erecting end wall panel.
[03-M-14] |
| ||
 |
|

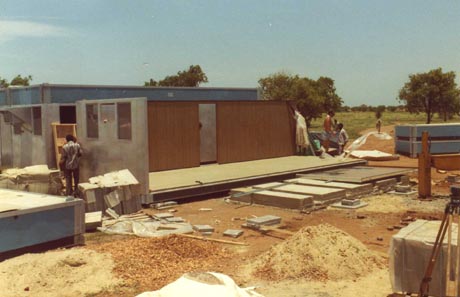

Locating side wall panel.
[03-M-16] |
| ||
 |
|

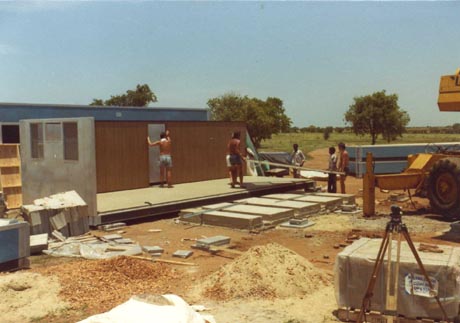

Carring second end wall panel.
[03-M-17] |
| ||
 |
|

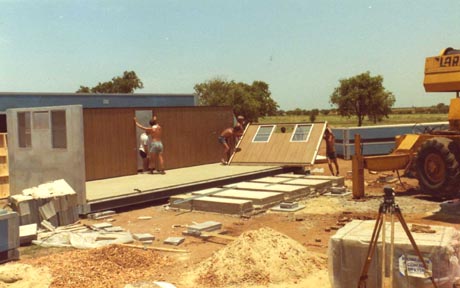

Erecting end wall panel.
[03-M-18] |
| ||
|
|
Erecting end wall panel.
[03-M-18] |
| ||
 |
|

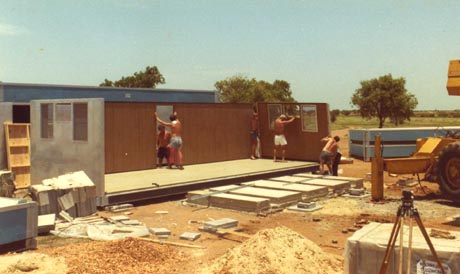

Locating end wall panel.
[03-M-19] |
| ||
 |
|
Fixing end wall panel.
[03-M-20] |
| ||
 |
|

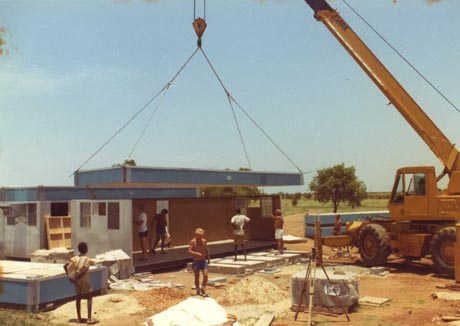

Placing the roof panel.
[03-M-21] |
| ||
 |
|

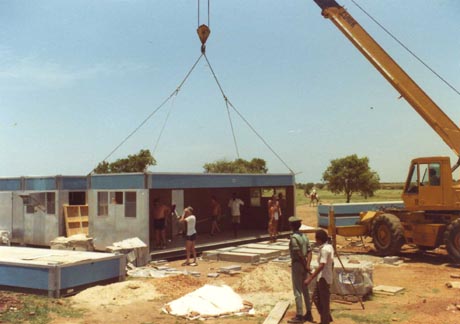

The roof panel is in position.
[03-M-22] |
| ||
 |
|

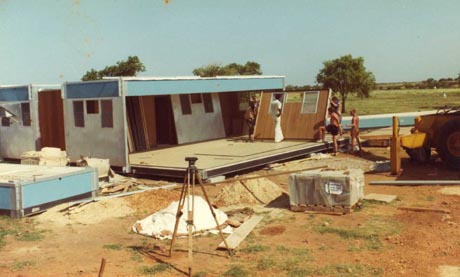

The floor panel is down for the centre segmant of the building ...
[03-M-34] |
| ||
 |
|

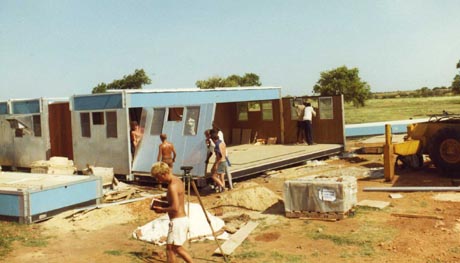

... then the end wall panels are placed...
[03-M-35] |
| ||
 |
|

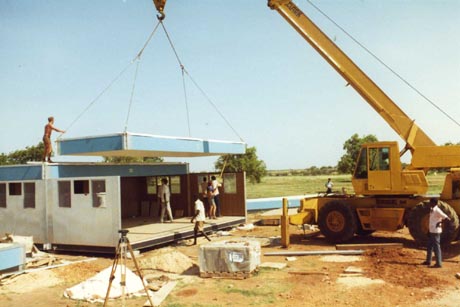

... and the roof lifted on.
[03-M-34] |
| ||
 |
|

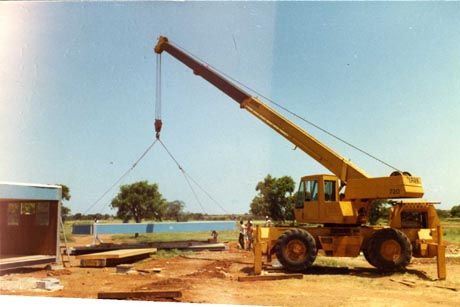

The pack containing the final segment is temporarily located.
[03-N-01] |
| ||
 |
|

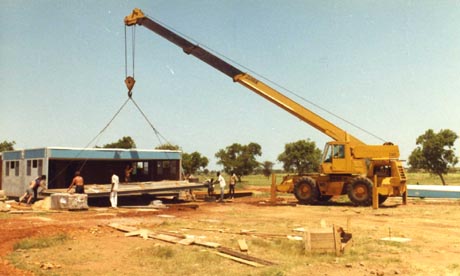

The roof panel having been removed, the floor is positioned.
[03-N-02] |
| ||
 |
|

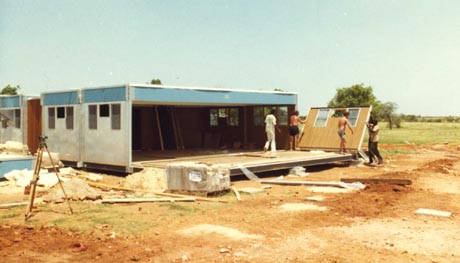

The end wall panel ...
[03-N-03] |
| ||
 |
|

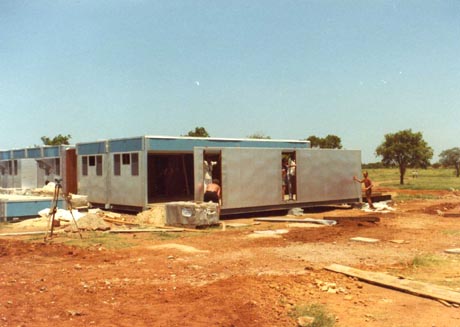

... and side wall panel are located ...
[03-N-04] |
| ||
 |
|

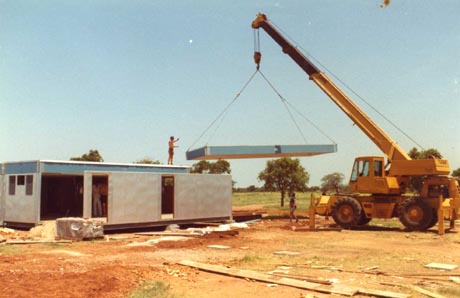

... then the roof panel lifted on.
[03-N-05] |
